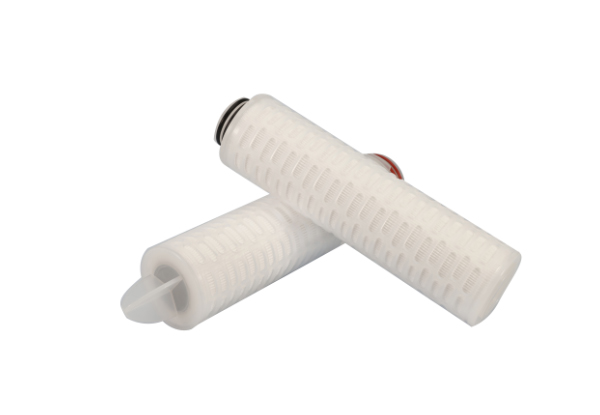

PVDF Cartridge

PVDF Cartridge

CFP Series filter cartridges are constructed of hydrophilic PVDF membrane and Polypropylene hardware. The single open ended (SOE) configuration is designed to fit into sanitary housings to ensure effective microbial removal and assembly integrity. Due to the low absorption of the protein, it is especially suitable for the filtration of culture medium, biological agents, vaccines.

Category:

Features

Very low protein adsorption and precipitation

Easy to wet and integrity test

High flow rate and longer service life

100% integrity tested during manufacture

Applications

Filtration in the food and beverage industry

Retention of particles and micro-organisms

Protein purification

Cell culture clarification

Blood filtration






Outer Diameter 69mm
Length 5”, 10”, 20”, 30”, 40”
Pore Size 0.22μm 0.45μm 0.65μm
Media PVDF
Support PP
Core/Cage PP
End Cap PSU insert/SS insert
Seal Material Silicone,EPDM,FKM
Max Operating Temperature 80℃
Max Operating DP 4.0 Bar @ 20℃

2.4 Bar @ 80℃



Part No. Membrane Type Pore Size Size End Cap Sealing Material
CFP PV=PVDF 0022=0.22μm 05=5” D0=DOE S=Silicone

Order
0045=0.45μm 10=10” E2=213/Flat E=EPDM

Order
0065=0.65μm 20=20” H1=222/Fin B=NBR

Order
30=30” H2=222/Flat V=Viton

Order
40=40” H5=222/Spear Fin F=E-FKM

Order
K1=222 Ext/Fin

Order
K2=222 Ext/Flat

Order
G1=226 /Fin

Order
G2=226 /Flat

Order
G5=226 /Spear Fin

Order
