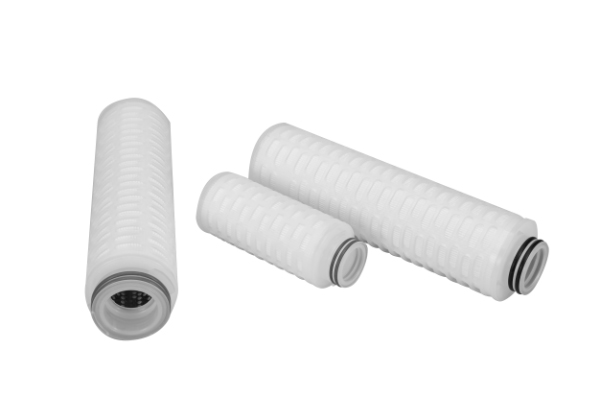

Hydrophobic PTFE Cartridge

Hydrophobic PTFE Cartridge

GVS Hydrophobic Polytetrofluoroethylene (PTFE) membrane Filter is a general application filter constructed from 0.1-5.0 μm membrane. Offers broad chemical compatibility, higher filter area with high flowrates at low pressure drop and low extractable. Generally applicable in various filtration process from compressed air, pressurized gases and filtration of chemicals and Solvents.

Category:

Product features

● Large filtration area and high flow
● Low pressure difference and long life
● Wide chemical compatibility
● Clean workshop production ensure the filter practical safety
● Sterilization level filter: 0.1μm~ 5μm

Typical Application

● Compressed air
● Pressurized gases
● Tank ventilation
● Chemicals
● Solvents





Body Diameter 69mm
Length 5’’, 10’’, 20’’, 30’’, 40’’
Filter Media PTFE
Media Support PP
Structural Components PP
Sealing Ring Silicone（EPDM, Teflon and Viton are available）
Filtration Area 0.65 m2/10’’
Maximum Operating Temperature 80°C
Maximum Operating Differential Pressure Forward 4.0 Bar @ 20℃
Brevundimonas diminuta 0.2μm LRV≥7 /cm2



Part No. Pore Size Length Connection Sealing Ring Inner Core
CFPPT 0010=0.1μm 5 = 5’’ G=226/Locking tabs/Fin E=EPDM P=PP

Order
0020=0.2μm 10=10’’ H=226/locking tabs/Flat S=Silicone S=stainless steel

Order
0045=0.45μm 20=20’’ I=226/plug / Flat V=Viton

Order
0060=0.6μm 30=30’’ J=222/locking tabs / Fin T=Teflon

Order
0100=1μm 40=40’’ K=222/plug / Fin

Order
0300=3μm L=222/plug / Flat

Order
0500=5μm M=DOE

Order
