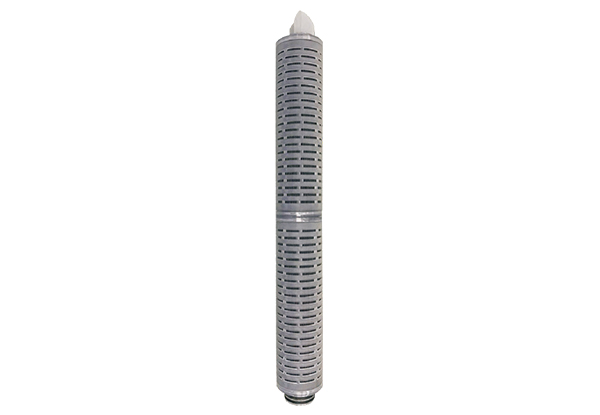

Carbon Cellulose Pleated Filter Cartridges

Carbon Cellulose Pleated Filter Cartridges

CCD Carbon Cellulose Pleated Filter Cartridges are made of high performance carbon impregnated cellulose media as well as FDA corresponding PP hardware and seal material. The media has features of narrow pore size distribution, big surface area, fast adsorption and desorption speed, good formability and other advantages. The main application of this filter cartridge is decolorizing filtration for pharmaceutical liquids and fine chemical products.

Category:

Applications

• Decolorizing filtration of organic solvent

• Decolorizing filtration of antibiotic, antivirus, hormone drugs

• Decolorizing filtration of Vitamins, amino acids, sugar, starch

• Decolorizing filtration of pesticide, fine chemical products

Dimension

• Outer Diameter: 69 mm

• Length: 5”, 10”, 20”, 30”, 40”

Material of Constructions

• Media: carbon impregnated

• Support: cellulose media PP

• Cage/Core/End cap: PP

• Sealing: Silicon, EPDM, FKM

Performance

• Micro rating: 5 μm PH: 1-13

• Max Operating Temperature: ≤ 50°C

• Max Operating Pressure: 65°C, 1.0 bar / 80°C

• Max. Operating DP: 4 bar @ 20°C, 1 bar @ 65°C
