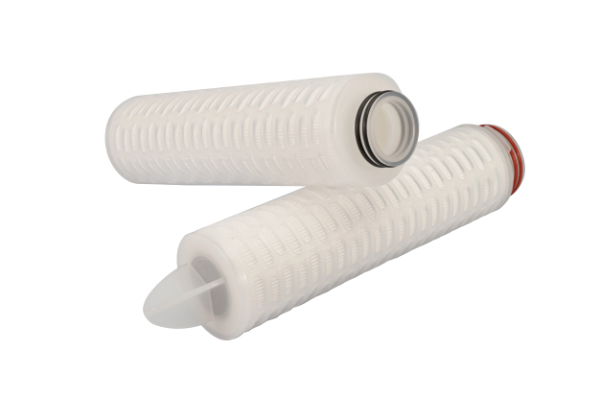

PES Cartridge

PES Cartridge

GVS Hydrophilic Polyethersulfone (PES) membrane filter is a Sterilizing grade filter constructed as a single-layer hydrophilic asymmetric PES membrane. It offers broad chemical compatibility, higher filter area with high flow rate at low pressure drops and low extractable. It offers pore size of 0.1μm-0.6μm.

Category:

Product features

● Large filtration area and high flow
● Low pressure difference and long life
● Wide chemical compatibility
● Clean workshop production ensure the filter practical safety
● Sterilization level filter: 0.1μm, 0.2μm, 0.45μm, 0.6μm
● Low protein adsorption rate

Typical Application

● Cell Culture Media
● Large Volume Parenteral (LVP’s)
● Pharmaceutical Bulk Chemical Solutions
● Bottled Water
● Process Water
● Aseptic Packaged Liquids
● Beer, Wine and Spirits
● Juice, Soft Drinks and Edible Oils





Body Diameter 69mm
Length 5’’, 10’’, 20’’, 30’’, 40’’
Filter Media PES
Media Support PP
Structural Components PP
Sealing Ring Silicone（EPDM, Teflon and Viton are available）
Filtration Area 0.65 m2/10’’
Maximum Operating Temperature 80°C
Maximum Operating Differential Pressure Forward 4.0 Bar @ 20℃
Brevundimonas diminuta 0.2μm LRV≥7 /cm2



Part No. Pore Size Length Connection Sealing Ring Inner Core
CFPPS 0010=0.1μm 5 = 5’’ G=226/Locking tabs/Fin E=EPDM P=PP

Order
0020=0.2μm 10=10’’ H=226/locking tabs/Flat H=226/locking tabs/Flat

Order
0045=0.45μm 20=20’’ I=226/plug / Flat V=Viton

Order
0060=0.6μm 30=30’’ J=222/locking tabs / Fin T=Teflon

Order
40=40’’ K=222/plug / Fin

Order
L=222/plug / Flat

Order
M=DOE

Order
