Glass Fiber Filters without binders

Glass Fiber Filters without binders

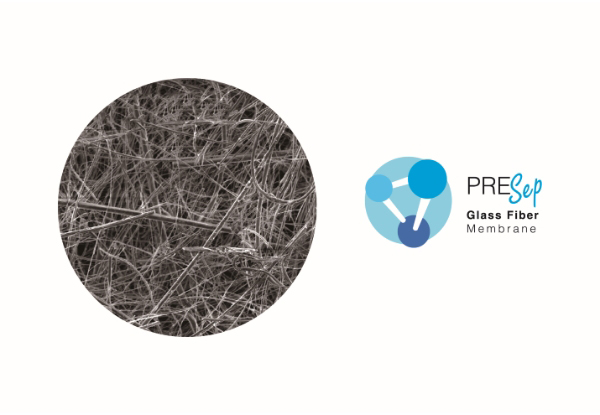

GVS Filter Technology offers a wide range of glass microfiber filters made of 100% borosilicate glass fibers without binders. The depth structure of the filter with its large surface area provides an outstanding impurity retention capacity combined with a low filter resistance. Glass fiber filters adsorb the finest particles down to 1 μm from liquids and < 1 μm in air and gases, as the electrostatic interaction between the glass fibers and gases is better than between glass fibers and liquids. Temperature resistant up to 500o C.

Category:

Features and Benefits：
Very small particles retention
Resistance to aggressive substances
Temperatures up to 500 oC
Fine retention with fast flow
100% borosilicate glass fibers without binders

Membrane：borosilicate glass fibers

Product Characteristics

Basis Weight 52 g/m2
Thickness 260 μm
Retention range 1.6 μm
Binders Binder-free
Retention DOP 99,998 %



Part No. Description Dimensions
1215557 FLT, DSK, GLASS, with Binder, with Binder, 13mm 100/pk 1.0 μm（G20）

Order
1215571 FLT, DSK, GLASS, with Binder, 13mm 100/pk 1.0 μm（G25）

Order
1215543 FLT, DSK, GLASS, with Binder, 22mm 100/pk 0.5 μm（G15）

Order
1215544 FLT, DSK, GLASS, with Binder, 25mm 100/pk 0.5 μm（G15）

Order
1215559 FLT, DSK, GLASS, with Binder, 25mm 100/pk 1.0 μm（G20）

Order
1215548 FLT, DSK, GLASS, with Binder, 47mm 100/pk 0.5 μm（G15）

Order
1215562 FLT, DSK, GLASS, with Binder, 47mm 100/pk 1.0 μm（G20）

Order
1215577 FLT, DSK, GLASS, with Binder, 47mm 100/pk 1.0 μm（G25）

Order
1215563 FLT, DSK, GLASS, with Binder, 75mm 25/pk 1.0 μm（G20）

Order
1215550 FLT, DSK, GLASS, with Binder, 90mm 25/pk 0.5 μm（G15）

Order
1215564 FLT, DSK, GLASS, with Binder, 90mm 25/pk 1.0 μm（G20）

Order
1215579 FLT, DSK, GLASS, with Binder, 90mm 25/pk 1.0 μm（G25）

Order
1215551 FLT, DSK, GLASS, with Binder, 124mm 25/pk 0.5 μm（G15）

Order
1215553 FLT, DSK, GLASS, with Binder, 142mm 25/pk 0.5 μm（G15）

Order
1215567 FLT, DSK, GLASS, with Binder, 142mm 25/pk 1.0 μm（G20）

Order
1215582 FLT, DSK, GLASS, with Binder, 142mm 25/pk 1.0 μm（G25）

Order
1215583 FLT, DSK, GLASS, with Binder, 257mm 25/pk 1.0 μm（G25）

Order
1215555 FLT, DSK, GLASS, with Binder, 293mm 25/pk 0.5 μm（G15）

Order
1215569 FLT, DSK, GLASS, with Binder, 293mm 25/pk 1.0 μm（G20）

Order
1268603 FLT, DSK, GLASS, with Binder, 24x24cm 10/pk 1.0 μm（G25）

Order
3029939 FLT, DSK, GLASS, Binderless, 7mm 500/pk 0.7 μm

Order
1215162 FLT, DSK, GLASS, Binderless, 25mm 100/pk 0.7 μm

Order
1213325 FLT, DSK, GLASS, Binderless, 25mm 100/pk 1.0 μm（G40）

Order
1215588 FLT, DSK, GLASS, Binderless, 37mm 500/pk 1.0 μm（G40）

Order
1215540 FLT, DSK, GLASS, Binderless, 47mm 100/pk 0.7 μm

Order
1215589 FLT, DSK, GLASS, Binderless, 47mm 100/pk 1.0 μm（G40）

Order
1215541 FLT, DSK, GLASS, Binderless, 90mm 25/pk 0.7 μm

Order
1225509 FLT, DSK, GLASS, Binderless, 90mm 25/pk 1.0 μm（G40）

Order
1212763 FLT, DSK, GLASS, Binderless, 90mm 25/pk 1.0 μm（G40）

Order
1220678 FLT, DSK, GLASS, Binderless, 257mm 100/pk 1.0 μm（G40）

Order
