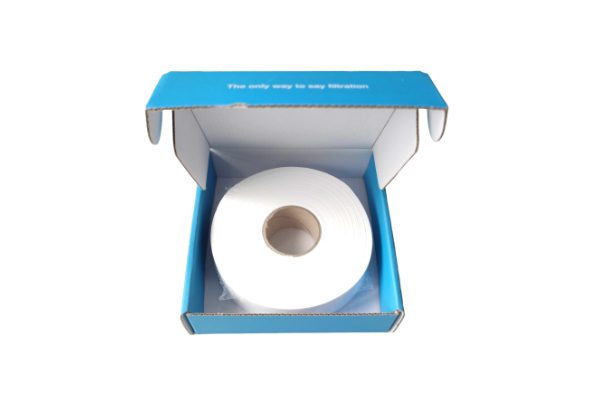

-BAM Filter Paper is a roll type glass fiber filter specially designed for BAM (Beta-ray Attenuation Monitoring) instruments. Its length of 21m is designed to last 60 days and 31m is designed to last 90 days.
-BAM Filter Paper is reliable and has been used for beta-ray attenuation monitoring for over 30 years around the world.
| Product Code | FA021RFAFAGLFC01 | FA031RFAFAGLFC01 |
| Weight | 49 ± 7 g/m2 | 49 ± 7 g/m2 |
| Thickness | 0.14 ± 0.03 mm | 0.14 ± 0.03 mm |
| Pressure Drop | ≦ 20.0 kPa | ≦ 20.0 kPa |
| Collection Efficiency (0.3μm DOP) | ≧ 99.9 ％ | ≧ 99.9 ％ |
| Tension | ≧ 7.8 N | ≧ 7.8 N |
| Repellency | ≧ 4.9 kPa | ≧ 4.9 kPa |
| Loss on Heat | 10.0 ± 2.0 ％ | 10.0 ± 2.0 ％ |
| Filter Size | 30 mm × 21 m | 30 mm × 31 m |
| Size Margin | Length: 21 m + 2 m, Width: 30 mm ± 0.5 mm | Length: 31 m + 2 m, Width: 30 mm ± 0.5 mm |
| Core Diameter | φ40.5 mm ± 0.5 mm | φ40.5 mm ± 0.5 mm |
| Origin | Made in Italy | Made in Italy |
| Part No. | Weight | Thickness | Pressure Drop | Collection Efficiency (0.3μm DOP) | Tension | Repellency | Loss on Heat | Filter Size | Size Margin | Core Diameter | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FA021RFAFAGLFC01 | 49 ± 7 g/m2 | 0.14 ± 0.03 mm | ≦ 20.0 kPa | ≧ 99.9 ％ | ≧ 7.8 N | ≧ 4.9 kPa | 10.0 ± 2.0 ％ | 30 mm × 21 m | Length: 21 m + 2 m, Width: 30 mm ± 0.5 mm | φ40.5 mm ± 0.5 mm | |
| FA031RFAFAGLFC01 | 49 ± 7 g/m2 | 0.14 ± 0.03 mm | ≦ 20.0 kPa | ≧ 99.9 ％ | ≧ 7.8 N | ≧ 4.9 kPa | 10.0 ± 2.0 ％ | 30 mm × 31 m | Length: 31 m + 2 m, Width: 30 mm ± 0.5 mm | φ40.5 mm ± 0.5 mm |
