Features
• The filter membrane is made of 0.22 μm hydrophilic polyether- sulfone for high throughput and excellent filtration performance
• The products have an effective filtration area of up to 19.9 cm2, and can filter samples up to 3.8-8 L in volume
• Maximum operating temperature: 45ºC
• Maximum inlet pressure: 3.3 bars (50 psi) at 25ºC
• Typical water flow rate: 390 mL/min at 25ºC under 15 psi

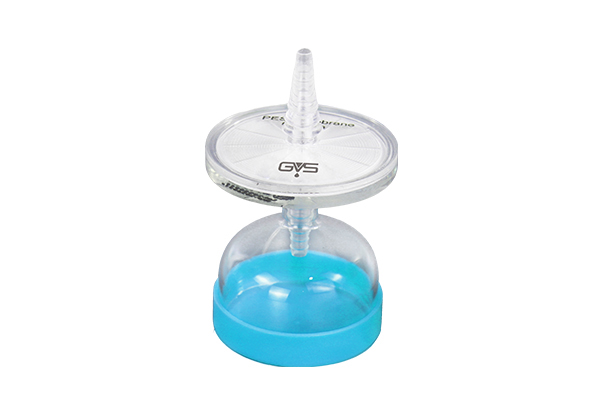

• It is designed with a filling bell avoiding liquid splashing and pollution
• Stepped hose barb design that ensures stable connection between the filter and the hose
• Filter surface with coding marks, clearly distinguish inlet and outlet
• Sterilized by irradiation, SAL 10-6, DNase/RNase-free, Non-pyrogenic, Non-cytotoxic
Membrane diameter: 50 mm • Membrane pore size: 0.22 μm • Pattern: Two stepped barbs, filling bell
• Materials:
-Filter housing: Methyl methacrylate-butadiene-styrene (MBS)
-Filter Membrane: Hydrophilic polyether sulfone (PES)
-Filling Bell: Polycarbonate (PC)
-Filling Bell Cap: Low-density polyethylene (LDPE) Conforming to USP Class VI standards
| Part No. | Description | Adaptive Tube Diameter | Membrane Pore Size(μm） | Membrane Diameter(mm) | Outer Diameter(mm) | Sterile | Qty. Per Bag | Qty. Per Case | |
|---|---|---|---|---|---|---|---|---|---|
| PLAJSF0505SA | PES membrane, two stepped barbs, filling bell | 1/2 ” -1/4 “ID | 0.22 | 50 | 62 | Y | 1 | 10 | |
| PLAJSF1505SA | PES membrane, two stepped barbs, without filling bell | 1/2 ” -1/4 “ID | 0.22 | 50 | 62 | Y | 1 | 10 |
