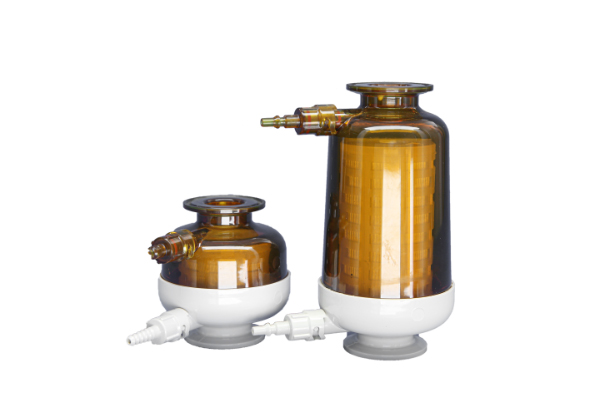

CXK-Steaming in Place Capsule Filters

CXK-Steaming in Place Capsule Filters

The GVS CXK Capsflow Steaming in Place Capsule filters have a standard filter sealed in a robust plastic housing, which remains high-strength and integral at a harsh applications. Typically Steaming in Place (SIP) sterilization. Capsflow filters are manufactured under criteria of certified Quality management system ISO 9001. All filters are integrity tested during manufacture to meet the set requirements. Materials of construction comply with FDA regulations for food and beverage contact use.

Category:

Benefits
• Purpose-designed for SIP
• Cost-saving
• Easy connection with sanitary flange
• On-line connection to automatic integrity tester Available in multiple choice of media and ratings

Typical Application
• Sterile filtration of air and liquid in pharmaceutical and biological products
• Sterile air feed

Size
• 2.5” (84 mm)
• 5” (159 mm)

Maximum Operating Conditions
• CXKPT (PTFE) 0.2 μm:
• Maximum Pressure: 5.8 barg @ 40°C
• Maximum Differential Pressure: 5barg @ 40°C

Filtration Area
CXKPT (PTFE), CXKPS (PES)
• 2.5” : 600 cm2
CXKNY (NYLON)
• 2.5” : 700 cm2
• 5” : 2100 cm2
• 5” : 1700 cm2
