String Wound Cartridge

GVS CFW Series String Wound Filter Cartridges are manufactured of structured loose outer layers and tight inner layers to offer true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength. Therefore, they can withstand higher PSID and severe operating conditions. The economical design makes the cartridges of greater superiority in cost-saving.

Description

Product features

● Broad chemical compatibility
● Many different combinations of filter materials and pore sizes
● String Wound depth filter cartridge
● High dirt holding capacity
● Economical design

Typical Application

● Consumer Products
● Food and Beverage
● Drinking Water
● Pharmaceutical
● Edible Oil
● Inks & Paints

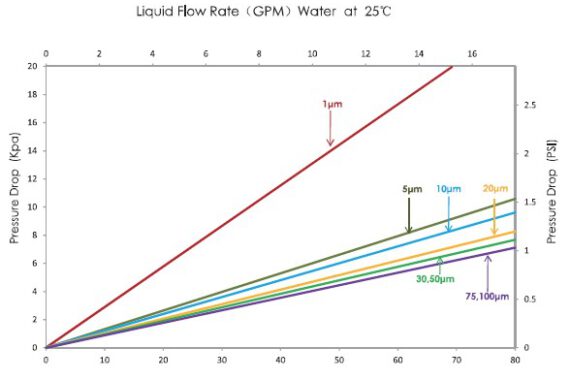

Flow Rate

Specifications

Body Diameter 63mm , 115mm
Internal Diameter 28mm
Length 9.87", 10", 20", 30", 40"
Filter Media PP, Bleached Cotton, Glass Fiber
Center Core PP, SS
Maximum Operating Temperature PP 80 ℃

Cotton 120 ℃

Glass Fiber 200 ℃
Maximum Operating Differential Pressure Forward 2.0 Bar @ 20℃

Ordering information

Part No. Pore Size Length Connection Sealing Ring Inner Core Price/one
CFW 0100=1μm 10=10" G=226/Locking tabs/Fin E=EPDM P=PP ￥

Order
0500=5μm 20=20" H=226/locking tabs/Flat S=Silicone S=stainless steel ￥

Order
1000=10μm 30=30" I=226/plug / Flat V=Viton ￥

Order
2000=20μm 40=40" J=222/locking tabs / Fin T=Teflon ￥

Order
3000=30μm K=222/plug / Fin ￥

Order
5000=50μm L=222/plug / Flat ￥

Order
M=DOE ￥

Order
