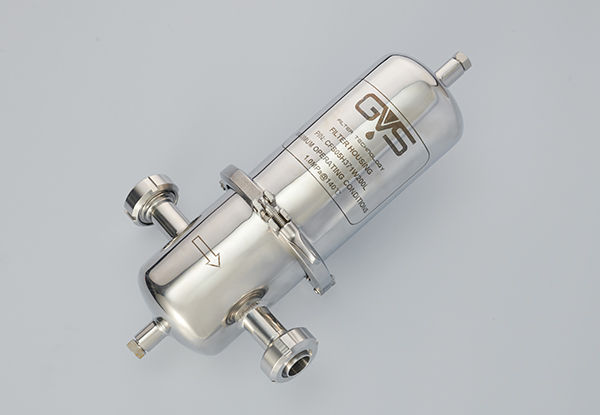

GVS stainless steel filter housings are designed for filtration of gas, liquid and steam filtration. The top of the housing is equipped with a Clamp connection for ancillary equipment such as pressure relief valves or pressure gauges. The lowest point of the housings are equipped with pharma valves or vent/drain connections. Filter housings are designed to yield low differential pressure at high flow rates.
Description
Product features
High quality stainless steel design
Extremely low differential pressure
Various connection types
Different structures are suitable for filtration systems with
different media such as gas, liquid and steam
Full traceability to each filter with unique serial number
Typical Application
Pharmaceutical Industry
Food and Beverage
Chemical Industry
Engineering
Automotive
Specifications
| Material | 316L SS or 304 SS |
| Housing Gasket | Silicone, PTFE, Viton |
| Connection Types | Union Connection
Ferrule Connection BSP thread connection DIN flange Welded ends |
| Surface Finish | Inner Surface Finish: Ra＜0.4μm
Outer Surface Finish: Ra＜0.8μm |
| Maximum Operating Temperature | Up to 200℃ depending on filter element selection and gasket material |
| Maximum Operating Differential Pressure | 10 Barg |
Ordering information
