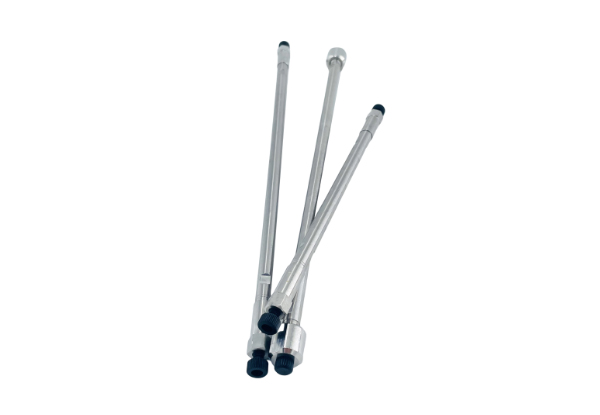

Sep sugar column and organic acids column are based on low crosslinked polystyrene / divinylbenzene (PS/DVB) particles with the surface modified with sulfonic acid (-SO3H) for Carbomix H-NP resins, followed by chelating of calcium ions (Ca+2) for synthesis of Carbomix Ca-NP resins. Resin cross-linking degree is an important parameter in the separation. We provide a 5% (-L), 8% (-M) and 10% (-H), three kinds of crosslinking degrees products. And 5um and 10μm particle size products are offered.
Sep sugar columns and organic acids columns are more comprehensive and economic, compared with Bio-Rad , Transgenomic and other brands of similar products.
| Packings | Type | Cross-linking degree | PH range | Maximum temperture | Applications |
| Sep H-L | H | 5% | 1-3 | 85℃ | fermentation products and fruit juice containing organic acids, sugar
and sugar alcohol |
| Sep H-M | H | 8% | 1-3 | 85℃ | |
| Sep H-H | H | 10% | 1-3 | 85℃ | |
| Sep Ca-L | Ca | 5% | 5-9 | 85℃ | monosaccharides, oligosaccharides and sugar alcohols |
| Sep Ca-M | Ca | 8% | 5-9 | 85℃ | |
| Sep Ca-H | Ca | 10% | 5-9 | 85℃ | |
| Sep Pb-L | Pb | 5% | 5-9 | 85℃ | Pentose and hexose in wood products, dairy products containing
sucrose, lactose, |
| Sep Pb-M | Type | 8% | 5-9 | 85℃ | |
| Sep Pb-H | Pb | 10% | 5-9 | 85℃ | |
| Sep K-L | Pb | 5% | 5-9 | 85℃ | Sucrose, honey, corn syrup, etc. |
| Sep K-M | K | 8% | 5-9 | 85℃ | |
| Sep K-H | K | 10% | 5-9 | 85℃ | |
| Sep Na-L | K | 5% | 5-9 | 85℃ | Oligosaccharides, samples containing sodium ions |
| Sep Na-M | Na | 8% | 5-9 | 85℃ | |
| Sep Na-H | Na | 10% | 5-9 | 85℃ |
| Part No. | Product Code | Particle size | Diameter × Length | |
|---|---|---|---|---|
| HCA100U046X300B2A | Sep H-L | 10μm | 4.6×300mm | |
| HCA100U078X300B2A | Sep H-L | 10μm | 7.8×300mm | |
| HCA050U046X250B3A | Sep H-M | 5μm | 4.6×250mm | |
| HCA050U078X100B3A | Sep H-M | 5μm | 7.8×100mm | |
| HCA050U078X300B3A | Sep H-M | 5μm | 7.8×300mm | |
| HCA100U046X250B4A | Sep H-M | 10μm | 4.6×250mm | |
| HCA100U046X300B4A | Sep H-M | 10μm | 4.6×300mm | |
| HCA100U078X300B4A | Sep H-M | 10μm | 7.8×300mm | |
| HCA100U046X300B6A | Sep H-H | 10μm | 4.6×300mm | |
| HCA100U078X300B6A | Sep H-H | 10μm | 7.8×300mm | |
| HCA100U046X300C2A | Sep Ca-L | 10μm | 4.6×300mm | |
| HCA100U078X300C2A | Sep Ca-L | 10μm | 7.8×300mm | |
| HCA050U046X250C3A | Sep Ca-M | 5μm | 4.6×250mm | |
| HCA050U078X300C3A | Sep Ca-M | 5μm | 7.8×300mm | |
| HCA100U046X250C4A | Sep Ca-M | 10μm | 4.6×250mm | |
| HCA100U046X300C4A | Sep Ca-M | 10μm | 4.6×300mm | |
| HCA100U078X300C4A | Sep Ca-M | 10μm | 7.8×300mm | |
| HCA050U046X250C5A | Sep Ca-H | 5μm | 4.6×250mm | |
| HCA100U046X300C6A | Sep Ca-H | 10μm | 4.6×300mm | |
| HCA100U078X300C6A | Sep Ca-H | 10μm | 7.8×300mm | |
| HCA100U046X300D2A | Sep Pb-L | 10μm | 4.6×300mm | |
| HCA100U078X300D2A | Sep Pb-L | 10μm | 7.8×300mm | |
| HCA050U046X250D3A | Sep Pb-M | 5μm | 4.6×250mm | |
| HCA050U078X100D3A | Sep Pb-M | 5μm | 7.8×100mm | |
| HCA050U078X300D3A | Sep Pb-M | 5μm | 7.8×300mm | |
| HCA100U046X300D4A | Sep Pb-M | 10μm | 4.6×300mm | |
| HCA100U078X300D4A | Sep Pb-M | 10μm | 7.8×300mm | |
| HCA100U046X300D6A | Sep Pb-H | 10μm | 4.6×300mm | |
| HCA100U078X300D6A | Sep Pb-H | 10μm | 7.8×300mm | |
| HCA100U046X300E2A | Sep K-L | 10μm | 4.6×300mm | |
| HCA100U078X300E2A | Sep K-L | 10μm | 7.8×300mm | |
| HCA050U046X250E3A | Sep K-M | 5μm | 4.6×250mm | |
| HCA050U078X100E3A | Sep K-M | 5μm | 7.8×100mm | |
| HCA050U078X100E3A | Sep K-M | 5μm | 7.8×300mm | |
| HCA100U046X300E4A | Sep K-M | 10μm | 4.6×300mm | |
| HCA100U078X300E4A | Sep K-M | 10μm | 7.8×300mm | |
| HCA100U046X300E6A | Sep K-H | 10μm | 4.6×300mm | |
| HCA100U078X300E6A | Sep K-H | 10μm | 7.8×300mm | |
| HCA100U046X300F2A | Sep Na-L | 10μm | 4.6×300mm | |
| HCA100U078X300F2A | Sep Na-L | 10μm | 7.8×300mm | |
| HCA050U046X250F3A | Sep Na-M | 5μm | 4.6×250mm | |
| HCA050U078X100F3A | Sep Na-M | 5μm | 7.8×100mm | |
| HCA050U078X300F3A | Sep Na-M | 5μm | 7.8×300mm | |
| HCA100U046X250F4A | Sep Na-M | 10μm | 4.6×250mm | |
| HCA100U046X300F4A | Sep Na-M | 10μm | 4.6×300mm | |
| HCA100U078X300F4A | Sep Na-M | 10μm | 7.8×300mm | |
| HCA100U046X300F6A | Sep Na-H | 10μm | 4.6×300mm | |
| HCA100U078X300F6A | Sep Na-H | 10μm | 7.8×300mm |
