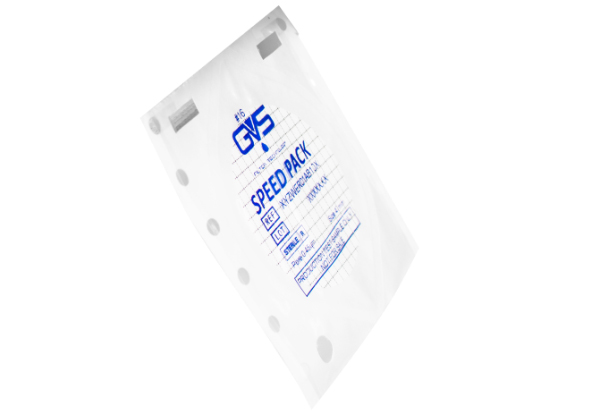

Single Packed Sterile MCE Membrane

Single Packed Sterile MCE Membrane

GVS Mixed Cellulose Esters (MCE) Filtration Membrane is an unsupported, hydrophilic membrane. Its rapid flow rate and high throughput make it ideal for use in bioburden and sterility testing.

Category:

Consistent Uniformity Improves Control and Performance
GVS MCE Filtration Membranes are composed of a mixture of inert cellulose nitrate and cellulose acetate polymers. The uniform microporous structure of these filters provides the fastest flow rates and highest throughputs available in a membrane filter. They are hydrophilic with a noncytotoxic wetting agent and yield extractable levels of less than 4% of their weight. These membranes are autoclavable at 121°C (250°F) for 20 minutes. Sterilized product lifetime is 24 months from sterilization date.
Characteristics
High flow rate: fast filtration rates
Uniform pore structure: consistent flow and diffusion rates
Lot-to-lot consistency
Typical Applications
Microbiological and particulate analysis
Black for food and beverage applications



Product Characteristics

Sterilization Gamma Irradiation or Ethylene Oxide(EtO)
USP Class VI testing Passed

Performance：

Pore Size (μm) Flow Time (s) Volume/Vacuum(mL/in Hg) Flow Rate (mL/min/cm2@10psi) Bubble Point (psi)
0.22 60-136 250/20 11.70-26.51 52-65
0.45 23-46 250/20 34.58-69.16 30-42
0.8 5-18 250/20 88.37-318.13 11-19



Part No. Diameter Pore Size Package Sterilized Color
1214396 47mm 0.22μm 1000/pk Yes White Gridded

Order
1214861 47mm 0.22μm 200/pk Yes White Gridded

Order
1214872 47mm 0.22μm 100/pk, with pad Yes White Gridded

Order
1216720 47mm 0.22μm 100/pk Yes White Gridded

Order
1214866 47mm 0.45μm 100/pk，with pad Yes Black Gridded

Order
1213643 47mm 0.45μm 1000/pk Yes Black Gridded

Order
1214923 47mm 0.45μm 1000/pk Yes White Gridded

Order
1214991 47mm 0.45μm 200/pk Yes Black Gridded

Order
1215230 47mm 0.45μm 200/pk Yes White Gridded

Order
1215237 47mm 0.45μm 100/pk, with pad Yes White Gridded

Order
1215249 47mm 0.45μm 100/pk, with pad Yes White Gridded

Order
1216719 47mm 0.45μm 100/pk Yes Black Gridded

Order
1216721 47mm 0.45μm 100/pk Yes White Gridded

Order
1222980 50mm 0.45μm 1000/pk Yes White Gridded

Order
1213331 47mm 0.7μm 200/pk Yes Black Gridded

Order
1215406 47mm 0.7μm 200/pk Yes White Gridded

Order
1216718 47mm 0.7μm 100/pk Yes Black Gridded

Order
1221948 47mm 0.7μm 1000/pk Yes Black Gridded

Order
1215590 47mm 0.8μm 1000/pk Yes Black Gridded

Order
1216723 47mm 0.8μm 100/pk Yes Black Gridded

Order
1216724 47mm 0.8μm 100/pk Yes White Gridded

Order
1225460 47mm 0.8μm 100/pk, with pad Yes White Gridded

Order
1216732 47mm 0.2 µm 250/PK Yes white

Order
1216733 47mm 0.45 µm 250/PK Yes white

Order
1216734 47mm 0.8 µm 250/PK Yes white

Order
1216730 47mm 0.45 µm 250/PK Yes black

Order
1216731 47mm 0.8 µm 250/PK Yes black

Order
1216737 47mm 0.2 µm 1000/PK Yes white

Order
1216738 47mm 0.45 µm 1000/PK Yes white

Order
1216735 47mm 0.45 µm 1000/PK Yes black

Order
1216736 47mm 0.8 µm 1000/PK Yes black

Order
1214872 47mm 0.2 µm 100/PK Yes white

Order
1215237 47mm 0.45 µm 100/PK Yes white

Order
1225460 47mm 0.8 µm 100/PK Yes white

Order
1214866 47mm 0.45 µm 100/PK Yes black

Order
1215249 47mm 0.45 µm 1000/PK Yes white

Order
