High Flow Filter Housings

High Flow Filter Housings

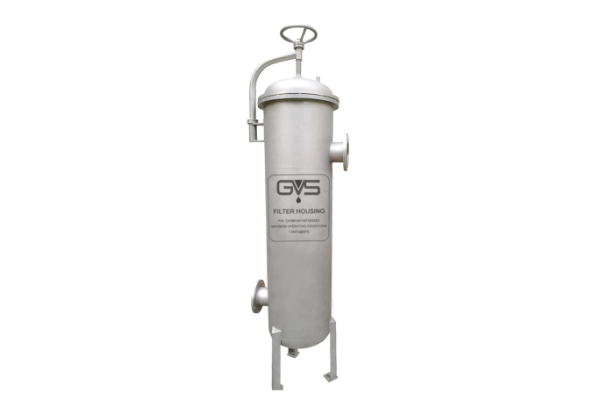

CHDM Series – High Flow vertical Filter Housings are designed to accommodate HF series High Flow filter cartridges intended for use primarily for higher fluid flow applications, especially in water treatment. Housings are available in a range of sizes accommodating from 1 to 5 cartridges in lengths of 40” . Constructed of high quality 304 or 316L stainless steel suitable for use in high temperatures, with tolerance to acids, alkalis, and organic chemicals. The vertical option minimizes the system’s footprint. Customized configurations are available to suit customers’ specific needs.

Category:

Features
• Using quality stainless steel components to build allhousings, ensures consistent quality and performance.
• Large cartridge size with expansive filtration area provides for high-volume liquid filtration at high retention efficiency with a low initial investment.
• Housings are manufactured with crevice-free internals, fine polishing inside to ensure surface smoothness. Preferable for potable water and food/beverage production

Applications
• Pre-filtration of RO systems; Bottled water production
• Filtration of process water, condensate water, cooling water, waste water
• Chemical industry filtration of acids, alkaline liquids, organic solvents
• Energy industry condensate & cooling waters
• Food and beverage: filtration of drinks, beverages and drinking water

Materials
Shell Options: 304 or 316L Stainless Steel
Drain/Vent Port: 304 or 316L
Tri-Clamp: 304
Stabilizer Blade: 304
Seal Materials: Silicone, FKM, EPDM

Operating Conditions
Max. Operating Pressure: 1.0MPa (150psi)
Max.Operating Temperature: 80℃(176°F)

Connections

Num Name Specification Connections Note
N1 Inlet pl-rf Flange HG/T20592-2009 PN16
N2 Outlet pl-rf Flange HG/T20592-2009 PN16
N3 Vent FNPT1/4″ Thread –
N4 Pressure Gauge Conection M14*1.5 Thread –
N5 Outlet FNPT1/4″ Thread –
