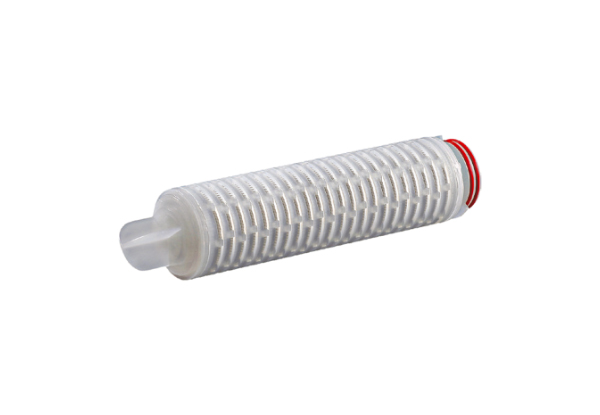

Glass Fiber Cartridge

The CFP series General Applications Glass Fiber (GF) Pleated Filter cartridges are highly efficient, good for the pre-filtration of gas and vent, and can be effectively used in a variety of industrial applications. The cartridge offers a large surface area for high flow rates and high dirt holding capacity, also reduces labor costs with less changing of the filters.

Category:

Features

• Low pressure drops and high flow rates

• High filtration efficiency, up to 96%

• Excellent chemical compatibility

• High dirt holding capacity and long service life

Applications

• Food & Beverage

• Chemicals & Oil

• Pharmaceutical

• Process Water Treatment

• Pre-filtration of vent & gas






Dimension

•Diameter 69 mm

•Length 5”, 10”, 20”, 30”, 40”

Food Contact Compliance

• Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR

• Materials used to produce filter media and hardware meet the specifications for biological safety per USP Class VI-121 °C for plastics

• Filter cartridges passed European Commission Directives (EU10/2011)

• Halal Certified

Material of Constructions

• Media GF

• Support PP

• Core/Cage/End Cap PP

• Seal Material Silicone, EPDM, NBR, FKM, E-FKM

Performance

• Operating Conditions

• Max. Operating Temperature 80 °C

• Max. Operating DP 4.0 Bar @ 20 °C

• 2.4 Bar @ 80 °C
