Features and Benefits:
Lower hold-up volume: Due to an improved flow channel design and reduced spacing between the supports within the housing, for better handling of small sample volumes or costly samples
Increased operating pressure: Up to 130 psi due to the over-mold that prevents sample leaking at the seam and keeps the lter unit from bursting in half
Strict quality control: Syringe lters are integrity tested to ensure a proper fit and weld to eliminate any potential filter by-pass
Accurate labeling: Each filter is labeled with the specific filter material and pore size for easy identification even if the syringe filter is not in its original packaging
Application
Filtration of Aqueous, Organic and Alcohol Solutions
Analytical Sample Preparation
IC Chromatography
Fuel Hydraulic Fluids and Machined Parts
Clarification
Protein Chemistry
Cell Culture

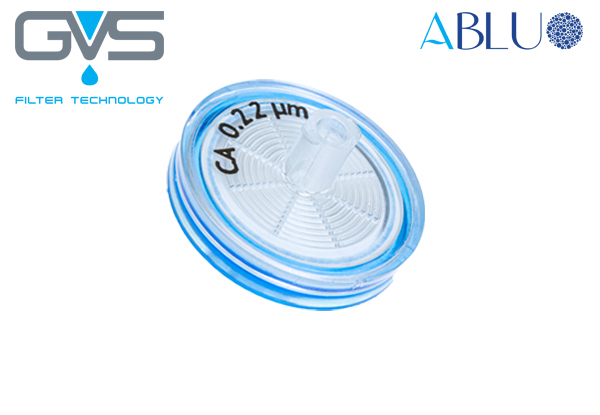

| Membrane Material | CA(Cellulose Acetate) |
| Membrane Diameter | 25mm |
| Housing Diameter | 33mm |
| Effective Filtration Area | 4.6 CM2 |
| Holdup Volume | <100 microliter |
| Maximum Operating Temperature | 50°C |
| Maximum Operating Pressure | 80 psi |
| Part No. | Diameter | Pore Size | Inlet/Outlet | Color | Package | Sterilized | |
|---|---|---|---|---|---|---|---|
| FJ25ASCCA050PL01 | 25mm | 5.0μm | FLL/MLL | Acrylic(Brown) | 50/pk | Yes | |
| FJ25ANCCA002DD01 | 25mm | 0.22μm | FLL/MLL | Acrylic(Blue) | 500/pk | No | |
| FJ25BSCCA002AL01 | 25mm | 0.22μm | FLL/MLL | Acrylic(Transparent) | 50/pk | Yes | |
| FJ25ANCCA004FD01 | 25mm | 0.45μm | FLL/MLL | Acrylic(Yellow) | 500/pk | No | |
| FJ25BSCCA004AL01 | 25mm | 0.45μm | FLL/MLL | Acrylic(Transparent) | 50/pk | Yes | |
| FJ25ANCCA008ED01 | 25mm | 0.80μm | FLL/MLL | Acrylic(Green) | 500/pk | No | |
| FJ25BSCCA008AL01 | 25mm | 0.80μm | FLL/MLL | Acrylic(Transparent) | 50/pk | Yes | |
| FJ25ANCCA012CD01 | 25mm | 1.20μm | FLL/MLL | Acrylic(Red) | 500/pk | No | |
| FJ25ANCCA050PD01 | 25mm | 5.0μm | FLL/MLL | Acrylic(Brown) | 500/pk | No | |
| FJ25ASCCA002DL01 | 25mm | 0.22μm | FLL/MLL | Acrylic(Blue) | 50/pk | Yes | |
| FJ25ASCCA004FL01 | 25mm | 0.45μm | FLL/MLL | Acrylic(Yellow) | 50/pk | Yes | |
| FJ25ASCCA008EL01 | 25mm | 0.80μm | FLL/MLL | Acrylic(Green) | 50/pk | Yes | |
| FJ25ASCCA012CL01 | 25mm | 1.20μm | FLL/MLL | Acrylic(Red) | 50/pk | Yes | |
| FJ25ANCCA002DH01 | 25mm | 0.22μm | FLL/MLL | Acrylic(Blue) | 100/pk | No | |
| FJ25ANCCA004FH01 | 25mm | 0.45μm | FLL/MLL | Acrylic(Yellow) | 100/pk | No | |
| FJ25ANCCA008EH01 | 25mm | 0.8μm | FLL/MLL | Acrylic(Green) | 100/pk | No | |
| FJ25ANCCA012CH01 | 25mm | 1.2μm | FLL/MLL | Acrylic(Red) | 100/pk | No | |
| FJ25ANCCA050PH01 | 25mm | 5μm | FLL/MLL | Acrylic(Brown) | 100/pk | No |
