PP Cartridge

GVS Nominal PP membrane is a pleated membrane in depth structure. It is a nominal grade applicable in filtrating particles in aqueous solutions and chemical. Have high dirt hold capacity, high retention rate of contaminants and wide chemical compatibility for various use, highly effective as providing longer lifespan. Offers sizes from 5 to 40 inches and 3 kinds of End-caps of SOE-Fin, Flat and DOE. Pore sizes are varied from nominal ratings of 0.1μm to 50μm.

Description

Product features

Large filtration area and high flow
Low pressure difference and long life
Wide chemical compatibility
Clean workshop production ensure the filter practical safety
Filtration accuracy is from 0.1 μ m to 50 μ m. It can meet the requirements of different filtration
Full range of filter size and interface mode

Typical Application

Process water
Vinegar
Aqueous solutions
Beer, wine and spirits
Juice, soft drinks and edible oils
Bulk chemicals
Pharmaceutical intermediates

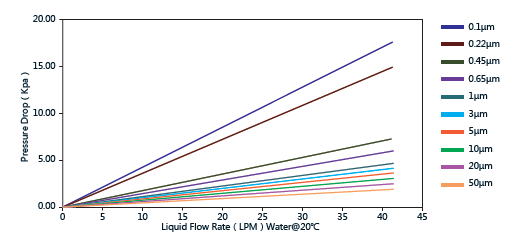

Flow Rate

Specifications

Body Diameter 69mm
Length 5’’, 10’’, 20’’, 30’’, 40’’
Filter Media PP
Media Support PP
Structural Components PP
Sealing Ring Silicone（EPDM, Teflon and Viton are available）
Filtration Area 0.65 m2/10’’
Maximum Operating Temperature 80°C
Maximum Operating Differential Pressure Forward 4.0 Bar @ 20℃

Ordering information

Part No. Pore Size Length Connection Sealing Ring Inner Core Price/one
CFPPP 0010=0.1μm 5 = 5’’ G=226/Locking tabs/Fin E=EPDM P=PP ￥

Order
0020=0.2μm 10=10’’ H=226/locking tabs/Flat S=Silicone ￥

Order
0045=0.45μm 20=20’’ I=226/plug / Flat V=Viton ￥

Order
0100=1μm 30=30’’ J=222/locking tabs / Fin T=Teflon ￥

Order
0300=3μm 40=40’’ K=222/plug / Fin ￥

Order
0500=5μm L=222/plug / Flat ￥

Order
1000=10μm M=DOE ￥

Order
2000=20μm ￥

Order
5000=50μm ￥

Order
